To a child, the SandMaster 440 sandbox toy is simple.
Turn the handle. The conveyor belt carries the sand uphill. Then, the sand drops into the hopper and pours back down.
Repeat until an adult announces that it is time to leave.
From the other side of the machine, however, it has been a slightly longer journey.
The SandMaster 440 sandbox toy started as an idea for Dig Dig for Kids. I wanted a kid-powered sand toy that would keep the sand moving without electricity. It also needed to work without complicated controls or an adult standing nearby explaining which button not to push.
The basic idea worked.
That did not mean the first version was finished.
Improving a Kid-Powered Sand Conveyor
Over time, the SandMaster 440 sandbox toy has been adjusted, rebuilt and improved in my workshop.
Calling it a workshop may be generous. Most of the development happened in my garage. I usually work from a plywood table balanced across two sawhorses.
As the design improved, guards were added. Hubs were enclosed. Belt alignment became more precise. Holes moved slightly. Parts changed shape.
Then there were the squeaks.
Children appear to have an impressive ability to ignore the sound of metal rubbing against metal. Parents do not.
A sand conveyor toy may be mechanically functional. However, if it produces a high-pitched squeak each time a child turns the handle, it is not finished. It is an indoor endurance test.
Therefore, squeak elimination became part of the development process.
Replacing the “Hold This Right Here” Method

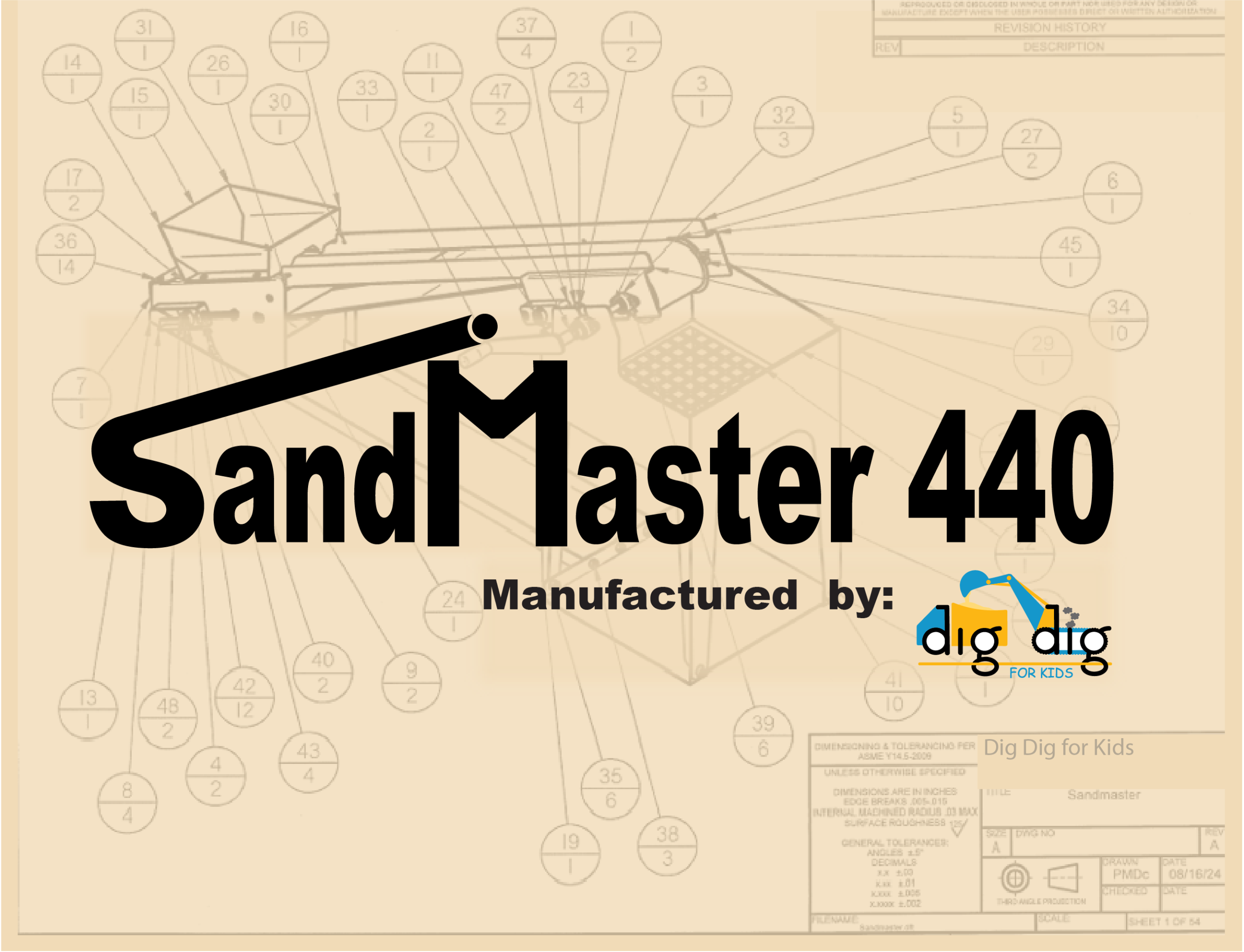

Eventually, CAD drawings began replacing my original design process.
The earlier system was highly technical. It was commonly known as: “Hold this right here while I drill it.”
No two early SandMasters were built exactly alike. Each version worked, but every build taught me something new.
The machine also has to be assembled in a specific order. Install one harmless-looking part too early, and the SandMaster remains surprisingly patient. It allows you to continue working for another twenty minutes. Then, it reveals that you need to take half of it back apart.
I have personally tested this feature repeatedly.
At this point, the SandMaster 440 sandbox toy has more than 130 individual parts. It includes fabricated metal pieces, hubs, bearings, shaft collars and rubber components. In addition, it has a conveyor belt and a surprisingly large collection of nuts and bolts.
The hardware comes in different lengths, threads and head styles. Some pieces also appear to have opinions.
Turning a Workshop Project Into a Repeatable Product
The newest challenge is turning those improvements into a repeatable product.
That means finalizing the CAD drawings, standardizing the hardware and writing an actual instruction manual. The goal is simple: someone else should be able to assemble a SandMaster without access to my bucket of bolts.
They should not need my personal history of mistakes either.
Unfortunately, I have never been especially gifted at following instructions. Now, I am responsible for writing them.
This project has given me a new appreciation for the people who create assembly manuals. Explaining something clearly is not easy when you already know exactly how it works.
It also explains why so many instructions skip one critical step. Occasionally, they introduce a mystery washer halfway through the project. Other times, they include a sentence that sounds like it passed through three languages before reaching English.
You know the kind:
“Insert the rotating support upon the lower receiving protection prior to fixation of transportation pathway.”
That probably means:
“Put this part on first, or you will be taking the whole thing back apart.”
Getting Every Detail Right
With more than 130 parts, getting the instructions 99 percent right is not quite good enough.
That missing one percent usually causes the trouble. It can send someone on an irritated trip to the hardware store. It may leave one unidentified bolt sitting on the workbench. Worse, it can result in a fully assembled SandMaster that does not actually master any sand.
So, the work continues.
The SandMaster 440 sandbox toy may look simple when a child turns the handle. That is exactly the point.
A child should not have to think about bearings, hardware or belt alignment. They should not notice how many versions came before the current design. Most importantly, they should never hear a squeak.
They should simply turn the handle, watch the sand climb uphill and do it again.
Then, eventually, an adult can announce that it is time to leave.
